AIRSPRING BUILDER RACK

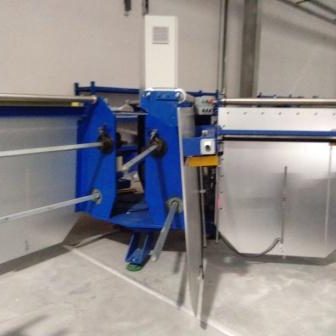

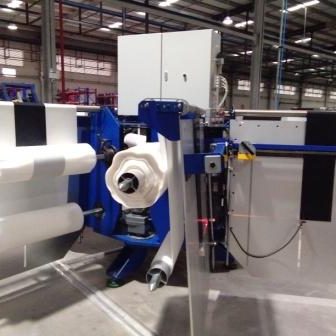

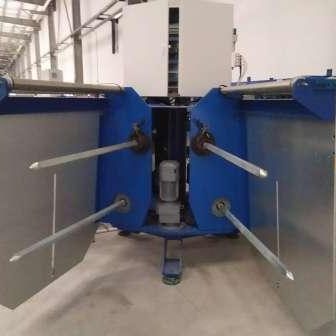

The rack is a supporting equipment of the bellows building machine, which is used for the fixed-length cutting of sealing sheet, endurance cord fabrics and oil-resistant outside rubber sheet. The rack has various forms. Our company’s six station vertical rack can be used for fixed length cutting of up to six kinds of materials.

Normally, air spring bellows use three kinds of material, sealing interior, endurance cord fabrics and oil-resistant outside rubber sheet. For special purpose bellows, up to six layers are required. The maximum diameter of the machine roll is 400mm and the length is 1000mm, which can meet the production requirements of bellows.

According to the material order of production process, the material rack rotates automatically to improve production efficiency. The rubber sheet is cut mechanically to reduce the working intensity. Equipped with length detection sensor, feeding is automatic, and feeding length tolerance within 2mm.

The six – station rack is the best partner for the machine.

Material rack configuration, PLC, HMI: Siemens; Reducer: SEW; Linear guide rail, ball screw: Taiwan HIWIN; Bearings: NSK, SKF; Pneumatic components: SMC, FESTO, CKD. Ensure the machine accuracy, reliability and service life of the equipment.
